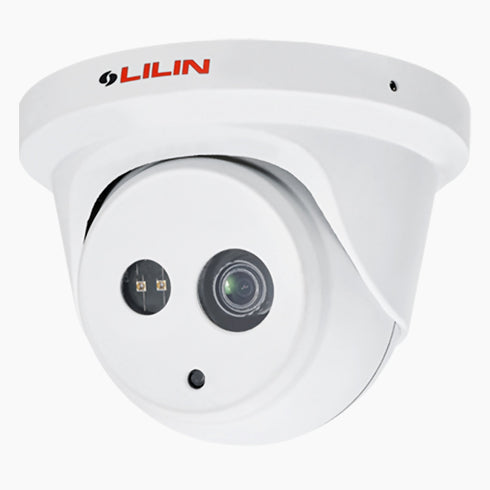

P2R6552E2-I 5MP IR Vandal Resistant IP Dome Camera

SKU:

BARCODE:

PRODUCT TYPE: IP Bullet Camera

VENDOR: LILIN

P2R6552E2-I is a 5MP dome camera designed for professional surveillance, delivering clear high-definition video even in low light. Equipped with advanced H.265 compression, this camera ensures efficient bandwidth use while maintaining superior image quality. Its robust aluminum housing provides IP67 weather resistance and IK10 vandal protection, making it suitable for both indoor and outdoor installations. With infrared night vision up to 30 meters, wide dynamic range up to 120dB, and integrated noise reduction, it offers reliable performance for critical monitoring environments.

  • 5MP CMOS sensor with 100° wide viewing angle
  • Infrared LED night vision up to 30 meters
  • Durable IP67 and IK10 rated vandal-resistant casing
  • Advanced H.265/H.264 video compression for efficiency
  • Supports ONVIF Profile S for system integration
KEY FEATURES
SPECIFICATION
DESCRIPTION
KEY FEATURES

Captures sharp, detailed images with a 5-megapixel CMOS image sensor and 2.8mm fixed lens.

Delivers high-performance video compression with simultaneous H.265 and H.264 streaming support.

Equipped with advanced 3D noise reduction and 2D WDR for improved image clarity in challenging lighting.

Supports DWDR function up to 120dB for enhanced visibility in high-contrast environments.

Infrared night vision range up to 30 meters with high-efficiency 850nm IR LEDs.

Robust IP67-rated and IK10 vandal-resistant aluminum casing for outdoor and harsh environment use.

Auto day/night IR-cut filter and multiple image enhancement options including brightness, contrast, and sharpness.

Multiple streaming options with up to three simultaneous streams and resolutions up to 5MP (2592 × 1920).

Wide angle of view (H: 100.4°, V: 73.6°, D: 127.5°) for comprehensive area coverage.

Integrated with LILIN mobile app and supports ONVIF Profile S and LILIN Navigator for third-party VMS compatibility.

Event triggers include motion, alarm, network loss, and metadata for responsive surveillance actions.

Power options include DC12V and PoE (IEEE 802.3af compliant) for flexible installation scenarios.

Operates reliably in extreme temperatures from -30°C to +50°C with up to 90% humidity tolerance.

Supports multilingual interface and secure access with up to 7 user accounts and password protection.

Includes privacy masking, image flip/mirror, and built-in digital zoom capabilities for tailored surveillance control.

SPECIFICATION
MODEL NAMEP2R6552E2-I
IMAGE SENSOR5 megapixel 1/2.7" CMOS
VIDEO COMPRESSIONH.265/HEVC, H.264/AVC, Motion JPEG
SIMULTANEOUS STREAMINGYes, H.265 and H.264
3D NOISE REDUCTIONMCTF, Off / 1 – 32 selectable
2D WDROff / Auto / x2 / x3 / x4
DWDRUp to 120dB
IR ILLUMINATIONHigh efficiency IR LED, 30m distance
DAY & NIGHTIR cut removable
ONVIF SUPPORTProfile S
IP RATINGIP67
VANDAL RESISTANTIK10
MINIMUM ILLUMINATIONColor: 0.04 Lux; B/W: 0.006 Lux; 0 Lux with IR
FOCAL LENGTH2.8mm
IRIS / APERTUREF2.0, Fixed Iris
ANGLE OF VIEWH: 100.4°, V: 73.6°, D: 127.5°
PEAK WAVELENGTH850nm
BEAM SPREAD60°, 90°
LIGHT SENSORYes
CERTIFICATIONSCE, FCC (EMI Class A)
PC REQUIREMENTSIntel i7+, Windows 7+, 8GB RAM+, Dedicated GPU
SUPPORTED BROWSERSInternet Explorer 9+, Edge (IE mode)
STREAMING PROTOCOLSRTSP/UDP, RTSP/TCP
NUMBER OF STREAMS3
VIDEO BITRATE128Kbps – 8192Kbps, VBR/CBR/GOP
AUTHENTICATIONDigest HTTP, RTSP, DDNS via HTTPS
USER ACCOUNTS7 users, multiple access levels
RESOLUTIONS2592x1920, 2304x1728, 2304x1280, 1920x1080, 1280x960, 1280x720, 720x576, 720x480, 720x384, VGA, CIF
MAX FRAME RATE20 fps @ 2592x1920
SCANNING SYSTEMProgressive Scan
IR CUT FILTERAuto / Day / Night / Schedule
WHITE BALANCEAuto / Manual
ELECTRONIC SHUTTER1/30s – 1/20000s
SENSE UPOff / x2 / x4
SENSE UP+Yes
AUTO GAIN CONTROL36 dB Variable
S/N RATIO>48dB (AGC off)
PRIVACY MASKINGOn/Off, 4 zones
IMAGE EFFECTSBrightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip
EXPOSURE VALUEAdjustable
MOBILE APPLILIN Pro (iPhone, iPad, Android)
VIDEO MANAGEMENTONVIF Profile S, LILIN Navigator, 3rd party VMS via HTTP API
FIRMWARE UPDATEHTTP, IP Scan
EVENT TRIGGERSMotion, Alarm, Network loss, Global Counter, Virtual Input, Metadata
EVENT ACTIONSFTP, SMTP, HTTP POST, Push Notification
LANGUAGESEnglish, Chinese (Traditional/Simplified), Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
ETHERNET10/100 Mbps Base-T, RJ-45
OSDText overlay for date/time/camera name
CPUARM Cortex-A7 800MHz
MEMORY128MB DDR3, 128MB flash
OSEmbedded Linux 3.10
NETWORK PROTOCOLSIPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF, SSL/TLS
