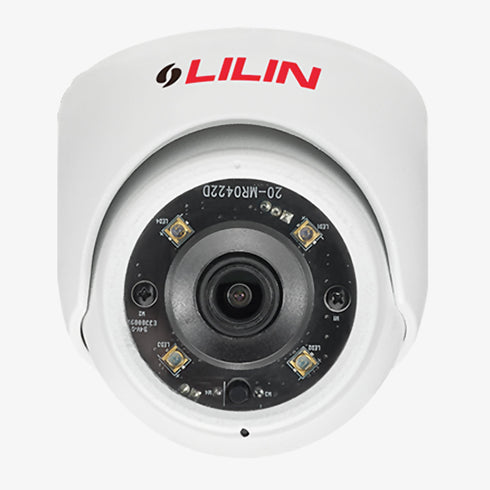

P2R6852E4 5MP Day & Night Fixed IR IP Mini Dome Camera

SKU:

BARCODE:

PRODUCT TYPE: IP Turret Camera

VENDOR: LILIN

<p>The P2R6852E2 5MP Day and Night Fixed IR Mini Dome IP Camera offers high-definition surveillance with reliable performance in any lighting condition. It features a 5MP CMOS sensor, H.265/H.264 compression, and HDR up to 120dB for superior image clarity. With a fixed 2.8mm lens, IR range of 30m, and built-in microphone, this compact IP camera is designed for indoor and outdoor use. Its IP67 and IK10 ratings ensure durability in challenging environments, while ONVIF support and smart video analytics enhance system integration and efficiency.</p> <ul> <li>5MP CMOS sensor delivers detailed, high-resolution video</li> <li>Advanced HDR and noise reduction ensure clear imaging</li> <li>IR LEDs provide up to 30m night vision capability</li> <li>Weatherproof and vandal-resistant design with IP67, IK10 ratings</li> <li>Supports ONVIF Profiles S and T for system compatibility</li> </ul>

KEY FEATURES
SPECIFICATION
DESCRIPTION
KEY FEATURES

Delivers ultra-clear imaging with a 5MP CMOS sensor (2592×1944 resolution) for high-detail surveillance footage.

Supports advanced H.265/HEVC and H.264 video compression to optimize bandwidth and storage efficiency.

Equipped with a fixed 2.8mm F1.6 lens offering a wide 116.5° diagonal field of view for maximum coverage.

Features Smart H.264/H.265 technology for intelligent bandwidth management based on scene complexity.

Utilizes 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB for enhanced image clarity in challenging lighting conditions.

Infrared LEDs provide up to 30 meters of night vision with 850nm wavelength and 60° IR beam angle.

Day & Night functionality with a removable IR-cut filter ensures accurate color reproduction during daylight and clear night vision.

Built-in microphone enables one-way audio recording using G.711, PCM, or AAC codecs.

Constructed with IP67 weatherproof and IK10 vandal-resistant housing for durability in harsh environments.

ONVIF Profiles S & T supported for seamless integration with third-party video management systems.

Includes Digital PTZ and Intelligent Video Surveillance (IVS) features for flexible monitoring and smart event detection.

Compatible with the LILIN Pro mobile app for remote viewing and control on iOS and Android devices.

Operates reliably in extreme temperatures from -40°C to +50°C, suitable for diverse installation locations.

Offers dual power options with DC12V or Power over Ethernet (PoE), consuming a maximum of 6.7W.

Backed by a 3-year warranty and certified by CE and FCC standards for quality assurance.

SPECIFICATION
MODEL NAMEP2R6852E2 5MP Day & Night Fixed IR IP Mini Dome Camera
PRODUCT TYPEIP Turret Camera
VENDORLILIN
IMAGE SENSOR1/2.8" 5MP CMOS (2592×1944)
LENSFixed 2.8mm, F1.6
ANGLE OF VIEW92.8° (H), 68.8° (V), 116.5° (D)
VIDEO COMPRESSIONH.265 (HEVC), H.264, MJPEG
SMART CODEC SUPPORTSmart H.264/H.265
FRAME RATE25 fps @ 2592×1944 (Normal & HDR mode)
DYNAMIC RANGEHDR up to 120dB
WIDE DYNAMIC RANGE2D WDR
NOISE REDUCTION3D Noise Reduction (MCTF)
DAY & NIGHT FUNCTIONIR cut removable (ICR)
IR SPECIFICATIONIR LEDs (850nm) with 30m range, 60° coverage
MINIMUM ILLUMINATION0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR On)
DIGITAL PTZSupported
INTELLIGENT VIDEO ANALYTICSIVS, Smart Events
AUDIOBuilt-in Microphone, One-way Audio (G.711 / PCM / AAC)
NETWORK PROTOCOLSONVIF Profiles S & T supported
MOBILE APP SUPPORTIntegrated LILIN Pro (iOS, Android)
OPERATING TEMPERATURE-40°C ~ +50°C
POWER SUPPLYDC12V / PoE, Max 6.7W
HOUSINGIP67 Weatherproof, IK10 Vandal Resistant
DIMENSIONSØ67 × 67 mm
WEIGHT265g
RESOLUTION OPTIONS5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF
CERTIFICATIONSCE, FCC
WARRANTY3 Years
