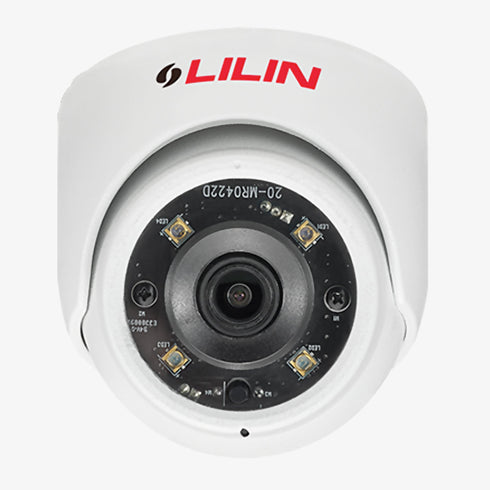

P2R6852E2 5MP Day & Night Fixed IR IP Mini Dome Camera
<p>The P2R6852E2 is a compact 5MP IP mini dome camera designed for high-performance surveillance in indoor and outdoor environments. It captures detailed images with a 1/2.8" CMOS sensor and supports H.265 and H.264 video compression for efficient storage. The camera features a 2.8mm fixed lens, HDR up to 120dB, and IR illumination up to 30 meters for superior low-light performance. With IP67 weatherproofing, IK10 vandal resistance, and PoE power support, it ensures reliable, continuous operation in challenging conditions.</p> <ul> <li>5MP CMOS sensor delivers high-definition clarity</li> <li>IR LEDs provide up to 30m night vision range</li> <li>Weatherproof and vandal-resistant housing rated IP67 and IK10</li> <li>Supports H.265 and H.264 compression for efficient storage</li> <li>Built-in microphone with one-way audio functionality</li> </ul>
Equipped with a high-resolution 5MP CMOS image sensor (2592×1944) for detailed video capture.
Supports H.265/HEVC and H.264 video compression for efficient storage and bandwidth usage.
Includes a fixed 2.8mm wide-angle lens with F1.6 aperture for expansive scene coverage.
Delivers superior image clarity with Smart H.264/H.265, 3D Noise Reduction (MCTF), and HDR up to 120dB.
Features IR LEDs with a 30-meter range for effective night vision and low-light surveillance.
Provides true Day & Night functionality with a removable IR-cut filter for round-the-clock monitoring.
Built-in microphone enables one-way audio monitoring with support for G.711, PCM, and AAC codecs.
Designed for outdoor use with IP67 weatherproof and IK10 vandal-resistant housing.
Complies with ONVIF Profiles S & T for seamless integration with third-party systems.
Supports digital PTZ, intelligent video surveillance (IVS), and smart event detection.
Compatible with the LILIN Pro mobile app for remote viewing on iOS and Android devices.
Delivers wide-angle coverage with 92.8° horizontal, 68.8° vertical, and 116.5° diagonal field of view.
Operates reliably in extreme temperatures from -40°C to +50°C for versatile deployment.
Offers flexible power options with DC12V or Power over Ethernet (PoE), consuming a maximum of 6.7W.
Backed by a 3-year warranty and certified with CE and FCC standards for quality assurance.
| MODEL NAME | P2R6852E2 5MP Day & Night Fixed IR IP Mini Dome Camera |
| PRODUCT TYPE | IP Turret Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 5MP CMOS (2592×1944) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| SMART CODEC SUPPORT | Smart H.264/H.265 |
| LENS | Fixed 2.8mm, F1.6 |
| VIEW ANGLE | 92.8°(H), 68.8°(V), 116.5°(D) |
| IR RANGE | 30m (850nm, 60°) |
| DAY & NIGHT | IR Cut Removable |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR) |
| WDR | 2D WDR, HDR up to 120dB |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| AUDIO | Built-in Microphone, One-way Audio (G.711 / PCM / AAC) |
| AUDIO TYPE | One-way |
| RESOLUTION OPTIONS | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | 25 fps @ 2592×1944 (Normal & HDR) |
| DIGITAL PTZ | Supported |
| IVS | Supported |
| SMART EVENTS | Supported |
| ONVIF SUPPORT | Profiles S & T |
| MOBILE APP | Integrated LILIN Pro (iOS, Android) |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 6.7W |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| DIMENSIONS | Ø67 × 67 mm |
| WEIGHT | 265g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
