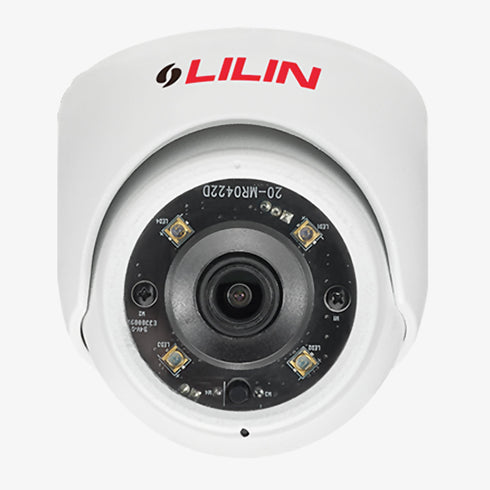

P2R6822E2 1080P Day & Night Fixed IR IP Mini Dome Camera

SKU:

BARCODE:

PRODUCT TYPE: IP Turret Camera

VENDOR: LILIN

<p>The P2R6822E2 is a compact 2MP IP turret camera designed for reliable day and night surveillance. Featuring a 1/2.8" CMOS sensor, it delivers Full HD 1080p resolution with H.265/H.264 compression for efficient video storage. Equipped with IR LEDs up to 30 meters, it ensures clear imaging in complete darkness. The camera supports digital PTZ, smart analytics, and multiple video profiles for flexible integration. Its IP67 and IK10 ratings provide superior weather and vandal resistance, making it ideal for both indoor and outdoor applications.</p> <ul> <li>Full HD 1080p resolution with 2MP CMOS sensor</li> <li>30m IR night vision with removable IR cut filter</li> <li>Wide 104° horizontal field of view</li> <li>IP67 weatherproof and IK10 vandal resistant housing</li> <li>Supports Smart H.265/H.264 and ONVIF S & T</li> </ul>

KEY FEATURES
SPECIFICATION
DESCRIPTION
KEY FEATURES

Captures high-definition video with a Full HD 2MP CMOS image sensor (1920×1080) for clear surveillance footage.

Supports H.265/HEVC and H.264 video compression to optimize storage and streaming efficiency.

Equipped with a fixed 2.8mm wide-angle lens (F1.6) for broad coverage and sharp image clarity.

Smart H.264/H.265 functionality enhances video quality while reducing bandwidth usage.

Delivers superior image clarity in varying lighting with 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB.

Built-in IR LEDs provide night vision up to 30 meters (850nm, 60°) for round-the-clock surveillance.

Day & Night functionality with removable IR cut filter ensures accurate color reproduction in daylight and visibility in darkness.

Features a built-in microphone and one-way audio support using G.711 / PCM / AAC codecs for enhanced monitoring.

Designed with IP67 weatherproof and IK10 vandal-resistant housing for reliable outdoor use.

Compatible with ONVIF Profiles S & T for seamless integration with third-party systems.

Supports digital PTZ, intelligent video surveillance (IVS), and smart event detection for proactive security.

Fully integrates with the LILIN Pro mobile app for remote viewing and management on iOS and Android devices.

Operates in extreme temperatures from -40°C to +50°C, suitable for harsh environments.

Offers flexible power options with DC12V and PoE support, consuming a maximum of 7.5W.

Backed by a 3-year warranty and certified with CE, FCC, and UL standards for quality assurance.

SPECIFICATION
MODEL NAMEP2R6822E2 1080P Day & Night Fixed IR IP Mini Dome Camera
PRODUCT TYPEIP Turret Camera
VENDORLILIN
IMAGE SENSOR1/2.8" CMOS, 2MP
MAX RESOLUTION1920×1080
VIDEO COMPRESSIONH.265, H.264, MJPEG
SMART COMPRESSIONSmart H.264/H.265
LENSFixed 2.8mm, F1.6
ANGLE OF VIEW104°(H), 58°(V), 119°(D)
MIN. ILLUMINATION0.005 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR)
IR DISTANCE30m
IR WAVELENGTH850nm
IR BEAM ANGLE60°
DAY & NIGHTIR cut removable
HDRUp to 120dB
WDR2D WDR
NOISE REDUCTION3D Noise Reduction (MCTF)
AUDIOBuilt-in microphone, One-way Audio (G.711 / PCM / AAC)
ONVIFProfiles S & T supported
DIGITAL PTZSupported
IVS / SMART EVENTSSupported
MOBILE APP SUPPORTIntegrated LILIN Pro (iOS, Android)
FRAME RATE60 fps @ 1920×1080 (Normal), 30 fps @ 1920×1080 (HDR)
RESOLUTION OPTIONS2MP / 1.3MP / 1MP / D1 / VGA / CIF
OPERATING TEMPERATURE-40°C ~ +50°C
POWER SUPPLYDC12V / PoE
POWER CONSUMPTIONMax 7.5W
DIMENSIONSØ67 × 67 mm
WEIGHT265g
WEATHERPROOF RATINGIP67
VANDAL RESISTANCEIK10
CERTIFICATIONSCE, FCC, UL
WARRANTY3 Years
