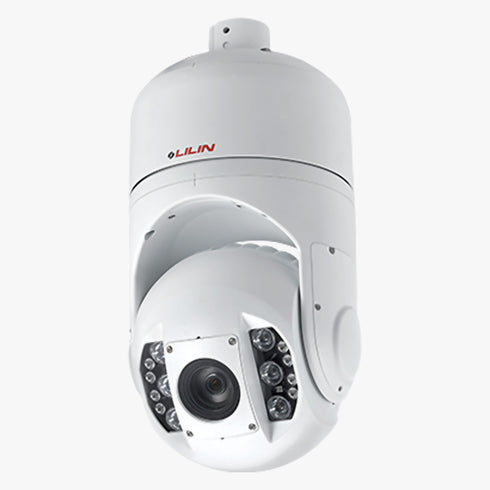

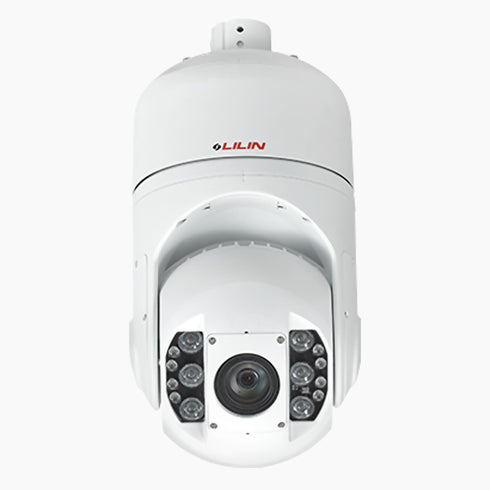

S7R5554EX30-C 5MP PTZ Dome Camera with 30X Optical Zoom and NEMA 4X Protection

SKU:

BARCODE:

PRODUCT TYPE: IP PTZ Camera

VENDOR: LILIN

S7R5554EX30-C PTZ dome camera delivers professional-grade 5MP video clarity with high-speed 30X optical zoom and precision PTZ control. Built for critical outdoor applications, it combines advanced AI analytics, HDR imaging up to 140dB, and exceptional low-light sensitivity for reliable day and night surveillance. Featuring a rugged NEMA 4X, IP66, and IK10-certified housing, this camera withstands harsh weather and vandalism. With IR night vision up to 200 meters, intelligent motion detection, and PoE++ support, it ensures dependable performance for industrial, commercial, and high-security environments.

  • 5MP CMOS sensor with triple H.265/H.264/MJPEG video streaming
  • 30X optical zoom and 8X digital zoom for detailed monitoring
  • AI video analytics, smart tracking, and HDR imaging up to 140dB
  • Rugged NEMA 4X, IP66, and IK10-rated weatherproof protection
  • PoE++ and 24V power options with -40°C to +50°C operation
KEY FEATURES
SPECIFICATION
DESCRIPTION
KEY FEATURES

Delivers high-resolution surveillance with a 5MP CMOS sensor supporting H.265/H.264/MJPEG triple streaming for efficient video compression.

Equipped with a powerful 30X optical zoom lens (4.94–148.2mm) and 8X digital zoom for detailed long-range image capture.

Supports HDR up to 140dB and 3D noise reduction, providing clear images in high-contrast or low-light environments.

Built to withstand extreme conditions with NEMA 4X certification, IP66 weatherproof rating, and IK10 vandal resistance.

Features 200-meter IR night vision and day/night functionality with an IR-cut filter for 24/7 monitoring.

Incorporates smart event detection including motion, audio, tamper alerts, AI tracking, and metadata analysis.

Offers seamless 360° endless pan and 240° tilt capabilities, with up to 256 programmable presets for precise coverage.

Supports PoE++ (IEEE802.3bt) power input for flexible and simplified installation in various environments.

Operates effectively in harsh temperatures ranging from -40°C to +50°C, ideal for outdoor use.

Compatible with SD cards up to 1TB (not included) for local video storage and backup.

Delivers smooth 30 FPS recording at full 5MP resolution in both normal and HDR modes.

Includes multiple power input options: AC24V ±10%, DC24V, and PoE++, catering to diverse installation needs.

Certified for safety and performance with NEMA 4X, IK10, IP66, UL, CE, and FCC approvals.

Compact and durable design with dimensions of 395×198mm and a weight of 6.95kg.

SPECIFICATION
MODEL NAMES7R5554EX30-C
PRODUCT TYPEIP PTZ Camera
VENDORLILIN
OPTICAL ZOOM30X (4.94–148.2mm)
DIGITAL ZOOM8X
SENSOR TYPE1/2.8" CMOS, 5MP (2592×1944)
VIDEO COMPRESSIONH.265/H.264/MJPEG Triple Streaming
HDRUp to 140dB
AI & IVS SUPPORTYes
3D NOISE REDUCTIONYes
NIGHT VISION200m IR, Day/Night with IR-Cut Filter
SMART EVENTSMotion, Audio, Tamper, AI Tracking, Metadata
PAN RANGE360° Endless
TILT RANGE-30° to +210°
PAN/TILT SPEEDUp to 300°/s
PRESETS256 Presets
FRAME RATE30 FPS @ 5MP (Normal & HDR Mode)
LOW LIGHT PERFORMANCE0.0008 lux B/W, 0 Lux (IR ON)
DAY/NIGHT FUNCTIONIR-Cut Filter Removable (ICR)
POWER SUPPLYAC24V ±10%, DC24V, PoE++ (IEEE802.3bt)
POWER CONSUMPTIONMax 76.5W (Heater ON)
OPERATING TEMPERATURE-40°C to +50°C
HOUSING MATERIALVandal Resistant, IK10 Rated
WEATHERPROOF RATINGIP66, NEMA 4X
CERTIFICATIONSNEMA 4X, IK10, IP66, UL, CE, FCC
CONSTRUCTION TYPEDome
SD CARD SUPPORTUp to 1TB (not included)
MOUNTING OPTIONSVarious mounting accessories available
AUDIO SUPPORTYes
DIMENSIONS395×198mm
WEIGHT6.95kg
AI TRACKINGSupported
METADATA SUPPORTYes
IR ILLUMINATIONUp to 200m
HEATERBuilt-in
LIGHT SENSORYes
IMAGE STABILIZATIONSupported
BACKLIGHT COMPENSATIONYes
WIDE DYNAMIC RANGEHDR up to 140dB
NETWORK INTERFACERJ-45 Ethernet 10/100 Base-T
PROTOCOL SUPPORTONVIF, HTTP, HTTPS, TCP/IP, IPv4/IPv6
WEB INTERFACEYes
SECURITY FEATURESPassword protection, IP filtering, HTTPS encryption
INSTALLATION ENVIRONMENTOutdoor
FOCUS TYPEAuto / Manual
WHITE BALANCEAuto / Manual
SHUTTER SPEED1/5 to 1/20000s
IR CUT FILTERAuto / Manual
