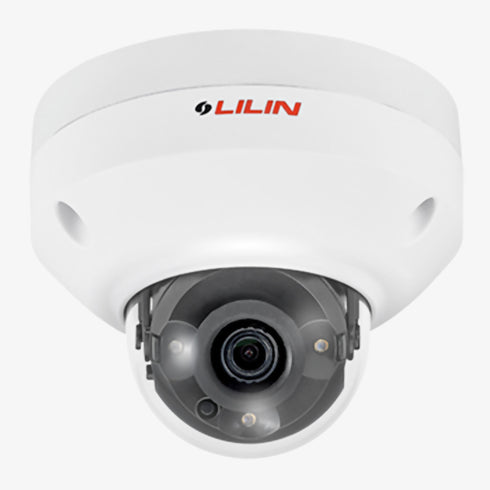

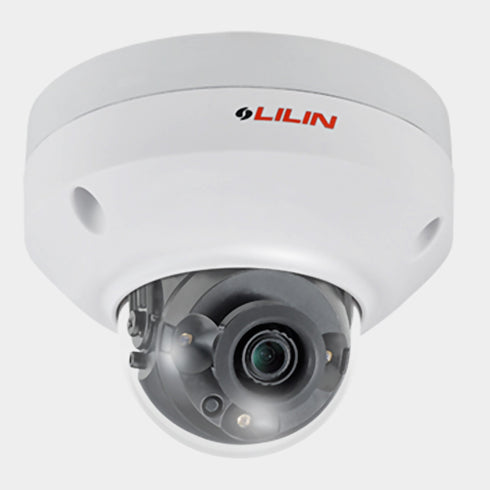

P2R6352AE4 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera

SKU:

BARCODE:

PRODUCT TYPE: IP Dome Camera

VENDOR: LILIN

<p>This 5MP dome IP camera offers high-definition surveillance performance with advanced image clarity for both day and night operation. Featuring a fixed 4mm lens, IR range up to 30 meters, and wide dynamic range support, it ensures optimal performance in diverse lighting conditions. Built with weatherproof and vandal-resistant housing, it is ideal for outdoor and high-security installations. The camera supports H.265 compression, two-way audio, and intelligent video analytics for enhanced monitoring and system integration.</p> <ul> <li>5MP high-resolution CMOS image sensor for clear, detailed footage</li> <li>Fixed 4mm lens with 76.6° horizontal field of view</li> <li>IR LEDs provide up to 30m night vision coverage</li> <li>IP67 weatherproof and IK10 vandal-resistant construction</li> <li>Supports ONVIF profiles S, T, and G for compatibility</li> </ul>



KEY FEATURES
SPECIFICATION
DESCRIPTION
KEY FEATURES

Captures crisp surveillance footage with a high-resolution 5MP CMOS image sensor (2592×1944).

Supports H.265/HEVC and H.264 compression formats for efficient video storage and streaming.

Features a fixed 4mm F1.6 lens, delivering a 76.6° horizontal field of view for broad area coverage.

Enhanced low-light performance with Day & Night functionality and removable IR-cut filter.

Integrated IR LEDs offer up to 30 meters of night vision with 850nm infrared illumination.

Delivers excellent image clarity with 3D Noise Reduction (MCTF), 2D WDR, and up to 120dB HDR.

Enables two-way audio with support for G.711, PCM, and AAC codecs, requiring an external mic.

Supports advanced analytics like Digital PTZ, IVS, and Smart Events for intelligent monitoring.

Built to endure harsh conditions with an IP67 weatherproof and IK10 vandal-resistant housing.

ONVIF Profiles S / T / G compliant for seamless integration with third-party systems.

Equipped with 1 alarm input and 1 output for enhanced security control.

Features a rugged polycarbonate dome cover and 3-axis mounting design for flexible installation.

Compatible with the LILIN Pro mobile app for remote viewing on iOS and Android devices.

Operates in extreme temperatures ranging from -40°C to +50°C, ideal for varied environments.

Backed by CE, FCC, and UL certifications and comes with a 3-year manufacturer's warranty.

SPECIFICATION
MODEL NAMEP2R6352AE4 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera
PRODUCT TYPEIP Dome Camera
VENDORLILIN
IMAGE SENSOR5MP CMOS (2592×1944)
VIDEO COMPRESSIONH.265/HEVC, H.264, MJPEG
LENSFixed 4mm, F1.6
SMART VIDEO CODECSmart H.264/H.265 supported
DYNAMIC RANGE2D WDR, HDR up to 120dB
3D NOISE REDUCTIONMCTF
IR RANGE30m (850nm, 60°)
DAY & NIGHTIR cut removable
AUDIO2-way Audio (G.711/PCM/AAC, SIP), external mic required
ALARM I/O1 in / 1 out
WEATHERPROOF RATINGIP67
VANDAL RESISTANTIK10
ONVIF SUPPORTProfiles S / T / G
DIGITAL PTZSupported
IVS / SMART EVENTSSupported
HOUSINGImpact resistant polycarbonate dome cover
CAMERA CONSTRUCTION3-Axis
MOBILE APP SUPPORTIntegrated LILIN Pro (iOS, Android)
MIN. ILLUMINATION0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR)
ANGLE OF VIEW76.6°(H), 55.8°(V), 98.6°(D)
SENSOR SIZE1/2.8" CMOS
SUPPORTED RESOLUTIONS5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF
FRAME RATEUp to 25 fps @ 5MP
OPERATING TEMPERATURE-40°C ~ +50°C
POWER SUPPLYDC12V / PoE
POWER CONSUMPTIONMax 7.5W
DIMENSIONSØ110 × 89 mm
WEIGHT520g
CERTIFICATIONSCE, FCC, UL
WARRANTY3 Years
