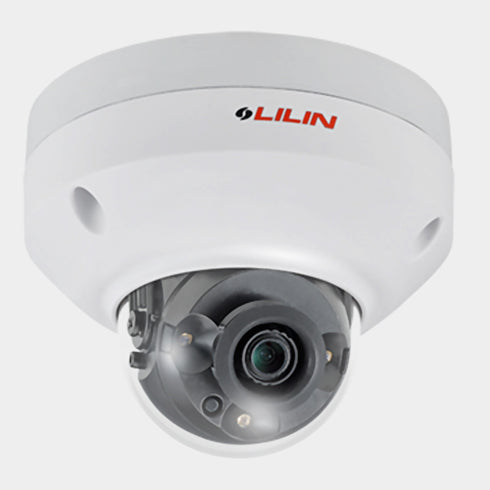

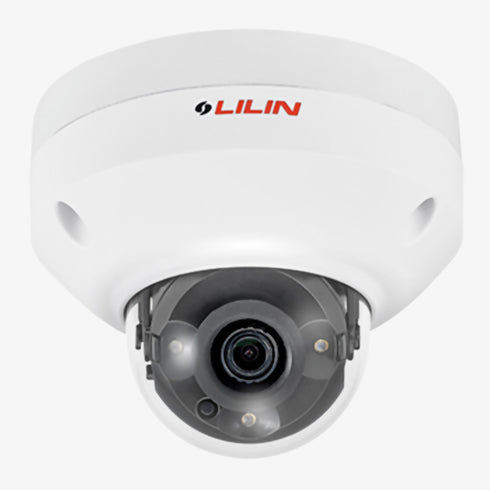

P2R6352AE2 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera
<p>The P2R6352AE2 5MP Dome Camera delivers crystal-clear images in both day and night conditions with advanced IR illumination up to 30 meters. Its durable vandal-resistant dome and IP67 weatherproof rating ensure reliability in challenging environments. Featuring H.265 compression, HDR imaging, and smart event detection, it provides efficient surveillance performance. The camera supports two-way audio, alarm I/O, and SD card recording up to 1TB, making it ideal for industrial, commercial, and outdoor security installations.</p> <ul> <li>5MP high-resolution CMOS image sensor for detailed video</li> <li>Advanced H.265 video compression for efficient bandwidth use</li> <li>30m IR range with automatic day and night switching</li> <li>IP67 weatherproof and IK10 vandal-resistant housing</li> <li>Supports smart events, digital PTZ, and SD card recording</li> </ul>
Equipped with a high-resolution 5MP CMOS image sensor (2592×1944) for detailed surveillance footage.
Supports advanced H.265/HEVC and H.264 video compression for efficient storage and bandwidth usage.
Features a fixed 2.8mm lens with F1.6 aperture, delivering a wide 116.5° diagonal field of view.
Includes Smart H.264/H.265 technology for optimized video streaming performance.
Offers 3D Noise Reduction (MCTF) and 2D WDR, with HDR capability up to 120dB for superior image clarity.
Integrated IR LEDs provide up to 30 meters of night vision, ideal for low-light environments.
Supports true Day & Night functionality with an IR cut filter for round-the-clock surveillance.
Enables two-way audio communication via SIP protocol with external mic support.
Features 1 input / 1 output Alarm I/O for event-triggered responses and system integration.
Built to withstand harsh conditions with IP67 weatherproof and IK10 vandal-resistant ratings.
Compatible with ONVIF Profiles S, T, and G for broad interoperability with third-party systems.
Includes Digital PTZ, IVS (Intelligent Video Surveillance), and Smart Events for advanced monitoring.
Durable polycarbonate dome cover and 3-axis construction allow flexible installation angles.
Supports local SD card recording up to 1TB (microSD card not included) for edge storage.
Seamlessly integrates with the LILIN Pro mobile app for remote viewing on iOS and Android devices.
| MODEL NAME | P2R6352AE2 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 5MP CMOS (2592×1944) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS | Fixed 2.8mm, F1.6 |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| WIDE DYNAMIC RANGE | 2D WDR, HDR up to 120dB |
| IR RANGE | 30m (850nm, 60°) |
| DAY & NIGHT | IR cut removable (ICR) |
| AUDIO | 2-way Audio (G.711/PCM/AAC, SIP), external mic required |
| ALARM I/O | 1 input / 1 output |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| ONVIF SUPPORT | Profiles S / T / G |
| DIGITAL PTZ | Supported |
| INTELLIGENT VIDEO | IVS, Smart Events |
| HOUSING MATERIAL | Impact-resistant polycarbonate dome |
| CONSTRUCTION | 3-Axis |
| MOBILE APP | LILIN Pro (iOS, Android) |
| STORAGE | MicroSD up to 1TB (card not included) |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 92.8° (H), 68.8° (V), 116.5° (D) |
| SENSOR SIZE | 1/2.8" CMOS |
| RESOLUTION OPTIONS | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 25 fps @ 5MP |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 520g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
