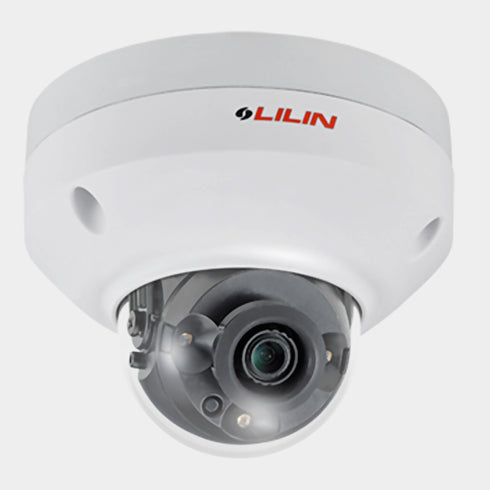

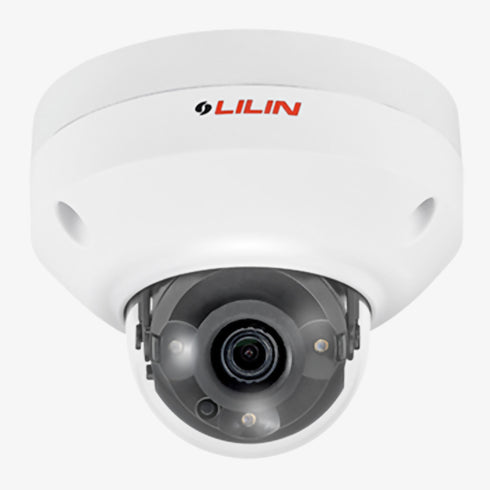

P2R6322AE4 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera

SKU:

BARCODE:

PRODUCT TYPE: IP Dome Camera

VENDOR: LILIN

<p>The P2R6322AE4 1080P Dome IP Camera delivers outstanding Full HD surveillance performance with a 2MP CMOS sensor and advanced H.265 compression. Designed for day and night monitoring, it features IR illumination up to 30 meters, a 4mm fixed lens, and wide dynamic range for superior image clarity. The weatherproof and vandal-resistant housing ensures reliable operation in harsh environments. With smart event detection, 2-way audio, and microSD storage up to 1TB, this camera offers dependable security for professional installations in both indoor and outdoor settings.</p> <ul> <li>Full HD 1080p resolution with 2MP CMOS sensor</li> <li>IR range up to 30 meters for clear night vision</li> <li>Fixed 4mm lens with wide 91° viewing angle</li> <li>IP67 weatherproof and IK10 vandal resistant design</li> <li>Supports PoE power and microSD storage up to 1TB</li> </ul>

KEY FEATURES
SPECIFICATION
DESCRIPTION
KEY FEATURES

Delivers full HD 2MP resolution (1920×1080) using a high-quality CMOS image sensor for crisp, detailed video capture.

Supports advanced H.265/HEVC and H.264 compression formats for efficient bandwidth and storage usage.

Equipped with a fixed 4mm lens (F1.6) offering a wide horizontal viewing angle of 91.0° for optimal surveillance coverage.

Features Day & Night functionality with a removable IR-cut filter for seamless transitions between lighting conditions.

Built-in IR LEDs provide night vision capabilities up to 30 meters with 850nm illumination.

Includes 3D Noise Reduction (MCTF), 2D Wide Dynamic Range, and HDR up to 120dB for enhanced image clarity in varied lighting.

Integrates 2-way audio support via external microphone and speaker, compatible with G.711/PCM/AAC codecs and SIP protocol.

Offers alarm input/output (1 in / 1 out) for external sensor or device integration in security systems.

Constructed with IP67-rated weatherproof housing and IK10 vandal resistance for robust outdoor durability.

Supports ONVIF Profiles S / T / G, ensuring broad compatibility with third-party systems and VMS platforms.

Features digital PTZ, intelligent video surveillance (IVS), and smart event capabilities for proactive monitoring.

Designed with a 3-axis polycarbonate dome structure for flexible and secure installation.

Compatible with LILIN Pro mobile app for convenient remote access via iOS and Android devices.

Supports microSD card recording up to 1TB capacity for edge storage (card not included).

Operates reliably in extreme temperatures from -40°C to +50°C, ideal for diverse environments.

SPECIFICATION
MODEL NAMEP2R6322AE4 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera
PRODUCT TYPEIP Dome Camera
VENDORLILIN
IMAGE SENSORFull HD 2MP CMOS (1920×1080)
VIDEO COMPRESSIONH.265/HEVC, H.264, MJPEG
SMART COMPRESSIONSmart H.264/H.265 supported
LENSFixed 4mm, F1.6
3D NOISE REDUCTIONYes (MCTF)
WDR2D WDR, HDR up to 120dB
IR DISTANCE30m (850nm, 60°)
DAY & NIGHTIR cut removable
AUDIO2-way Audio (G.711/PCM/AAC, SIP), external mic required
ALARM I/O1 in / 1 out
WEATHERPROOF RATINGIP67
VANDAL RESISTANCEIK10
ONVIF SUPPORTProfiles S / T / G
PTZDigital PTZ
SMART FEATURESIVS, Smart Events
DOME COVERImpact resistant polycarbonate
CONSTRUCTION3-Axis
MOBILE APP SUPPORTIntegrated LILIN Pro (iOS, Android)
SD CARD RECORDINGSupported (microSD up to 1TB, not included)
MIN. ILLUMINATION0.004 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR)
ANGLE OF VIEW91.0°(H), 48.0°(V), 109.0°(D)
SENSOR SIZE1/2.8" CMOS, 2MP
RESOLUTIONS SUPPORTED2MP / 1.3MP / 1MP / D1 / VGA / CIF
FRAME RATEUp to 60 fps @ 1080p
OPERATING TEMPERATURE-40°C ~ +50°C
POWER SUPPLYDC12V / PoE, Max 7.5W
DIMENSIONSØ110 × 89 mm
WEIGHT520g
CERTIFICATIONSCE, FCC, UL
WARRANTY3 Years
