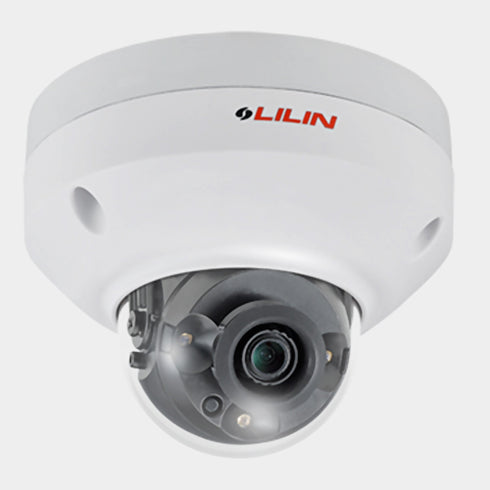

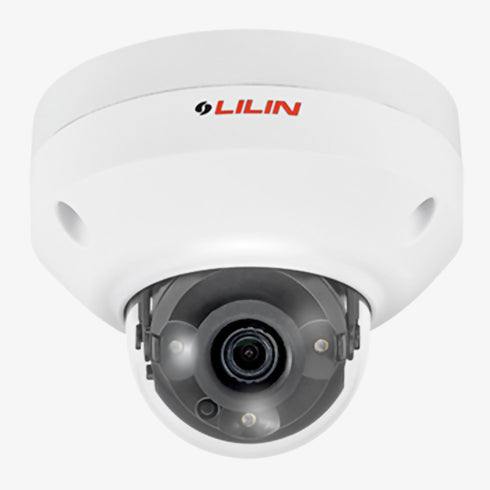

P2R6322AE2 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera
<p>The P2R6322AE2 dome camera delivers high-definition 1080P video performance with advanced H.265 compression for efficient storage and streaming. Designed for durability, it features an IK10 vandal-resistant housing and IP67 weatherproof protection, ensuring reliable operation in demanding environments. Equipped with infrared LEDs providing up to 30 meters of night vision, the camera captures clear footage even in total darkness. It supports smart events, digital PTZ, and two-way audio functionality for comprehensive monitoring. Ideal for both indoor and outdoor security setups, it offers flexible installation with PoE or 12V DC power options.</p> <ul> <li>Full HD 1080P resolution with H.265/H.264 compression</li> <li>IR LEDs with 30m night vision range</li> <li>Vandal resistant and weatherproof housing</li> <li>Supports smart events and digital PTZ</li> <li>Operates in temperatures from -40°C to +50°C</li> </ul>
Captures clear video with a Full HD 2MP CMOS sensor (1920×1080 resolution).
Supports advanced H.265/HEVC and H.264 video compression for efficient bandwidth usage.
Equipped with a fixed 2.8mm lens (F1.6) delivering a wide 119.1° diagonal field of view.
Provides superior low-light performance with 0.005 Lux (Color), 0.002 Lux (B/W), and 0 Lux with IR.
Built-in IR LEDs with 30m range and 850nm wavelength for enhanced night vision.
Features 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB for image clarity in varied lighting.
Supports Day & Night functionality with an IR-cut removable filter for seamless transition.
Includes 2-way audio capability (G.711/PCM/AAC, SIP) with external microphone support.
Alarm I/O interface with 1 input and 1 output for integrated security event management.
Rugged IP67 weatherproof and IK10 vandal-resistant construction for outdoor use.
ONVIF Profiles S, T, and G compliant for compatibility with third-party systems.
Enables Digital PTZ, Intelligent Video Surveillance (IVS), and smart event detection features.
Impact-resistant polycarbonate dome with 3-axis adjustment for flexible installation.
Supports microSD card recording up to 1TB for local video storage (card not included).
Compatible with the LILIN Pro mobile app for iOS and Android for remote monitoring.
| MODEL NAME | P2R6322AE2 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | Full HD 2MP CMOS (1920×1080) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS | Fixed 2.8mm, F1.6 |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| DYNAMIC RANGE | 2D WDR, HDR up to 120dB |
| IR LED RANGE | 30m (850nm, 60°) |
| DAY/NIGHT FUNCTION | IR cut removable |
| AUDIO | 2-way Audio (G.711/PCM/AAC, SIP), external mic required |
| ALARM I/O | 1 input / 1 output |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| ONVIF SUPPORT | Profiles S / T / G |
| DIGITAL PTZ | Supported |
| INTELLIGENT VIDEO | IVS, Smart Events |
| HOUSING | Impact resistant polycarbonate dome, 3-Axis construction |
| MOBILE APP | Integrated LILIN Pro mobile app (iOS, Android) |
| SD CARD SUPPORT | microSD up to 1TB (not included) |
| MIN. ILLUMINATION | 0.005 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 104.4°(H), 58.1°(V), 119.1°(D) |
| MAX IR DISTANCE | 30m |
| SENSOR SIZE | 1/2.8" CMOS |
| SUPPORTED RESOLUTIONS | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 60 fps @ 1080p |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 520g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
