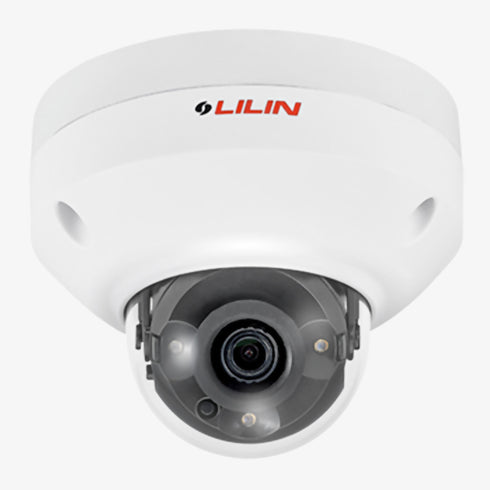

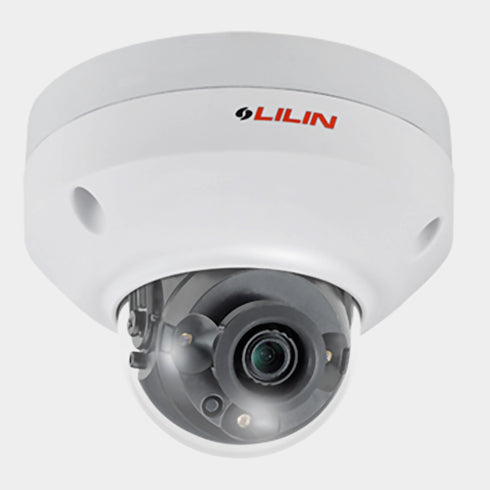

P2R3052AE2 5MP Day & Night Fixed IR Dome IP Camera
<p>The P2R3052AE2 is a high-performance 5MP dome IP camera designed for clear day and night surveillance. Featuring advanced H.265/H.264 compression, a fixed 2.8mm lens, and built-in infrared illumination up to 30 meters, it ensures detailed imaging in all lighting conditions. The camera supports 3D noise reduction, HDR up to 120dB, and two-way audio communication. With ONVIF compatibility, MicroSD recording, and mobile app integration, it offers a flexible and reliable solution for professional indoor and outdoor monitoring applications.</p> <ul> <li>5MP CMOS sensor delivers 2592×1944 resolution with vivid image quality</li> <li>H.265/H.264 compression reduces bandwidth and storage usage</li> <li>IR illumination up to 30 meters for effective night monitoring</li> <li>Supports two-way audio and alarm input/output for enhanced control</li> <li>PoE and 12V DC power options for flexible installation</li> </ul>
Captures high-resolution footage with a 5MP CMOS image sensor (2592×1944) for detailed video surveillance.
Supports advanced H.265/HEVC and H.264 compression standards to reduce bandwidth and storage usage.
Equipped with a 2.8mm fixed lens (F1.6) to provide a wide angle of view: 92.8° horizontal, 68.8° vertical, and 116.5° diagonal.
Integrates a sensitive built-in microphone and supports two-way audio (G.711/PCM/AAC, SIP) for enhanced communication capabilities.
Includes 1 audio input and 1 audio output, along with 1 alarm input and 1 alarm output for external device integration.
Features Smart H.264/H.265 support and advanced image enhancements such as 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB.
Built-in IR LEDs provide clear night vision up to 30 meters with an IR wavelength of 850nm and a 60° beam angle.
Day & Night functionality with removable IR cut filter for true color reproduction in varying lighting conditions.
Supports digital PTZ, intelligent video surveillance (IVS), and smart event detection for proactive monitoring.
Compatible with ONVIF Profiles S / T / G, ensuring broad interoperability with third-party systems.
Features 3-axis construction for flexible and easy installation at various angles.
Integrated with the LILIN Pro mobile app (iOS, Android) for remote viewing and control.
Supports local video storage with MicroSD card up to 1TB (card not included).
Operates reliably in temperatures ranging from -20°C to +50°C and powered via DC12V or PoE (IEEE 802.3af).
Comes with CE and FCC certifications and backed by a 3-year warranty for quality assurance.
| MODEL NAME | P2R3052AE2 5MP Day & Night Fixed IR Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 5MP CMOS image sensor (2592×1944) |
| COMPRESSION FORMAT | H.265/HEVC & H.264 high-performance compression |
| LENS | Fixed 2.8mm lens, F1.6 |
| AUDIO | Built-in sensitive microphone & 2-way audio (G.711/PCM/AAC, SIP) |
| AUDIO I/O | 1 in / 1 out |
| ALARM I/O | 1 in / 1 out |
| SMART CODEC SUPPORT | Smart H.264/H.265 supported |
| IMAGE ENHANCEMENT | 3D Noise Reduction (MCTF), 2D WDR, HDR up to 120dB |
| IR LED RANGE | 30m range (850nm, 60°) |
| DAY & NIGHT FUNCTION | IR cut removable |
| PTZ FUNCTION | Digital PTZ |
| INTELLIGENT VIDEO | IVS, Smart Events |
| ONVIF SUPPORT | Profiles S / T / G supported |
| CONSTRUCTION | 3-Axis construction |
| MOBILE APP INTEGRATION | Integrated with LILIN Pro mobile app (iOS, Android) |
| STORAGE | MicroSD recording supported (up to 1TB, card not included) |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 92.8°(H), 68.8°(V), 116.5°(D) |
| MAX IR DISTANCE | 30m |
| VIDEO RESOLUTION | 5MP / 4MP / 3.1MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 25 fps @ 5MP |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
| POWER SUPPLY | DC12V ±10% / PoE (IEEE 802.3af), Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 365g |
| CASING | Plastic |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
