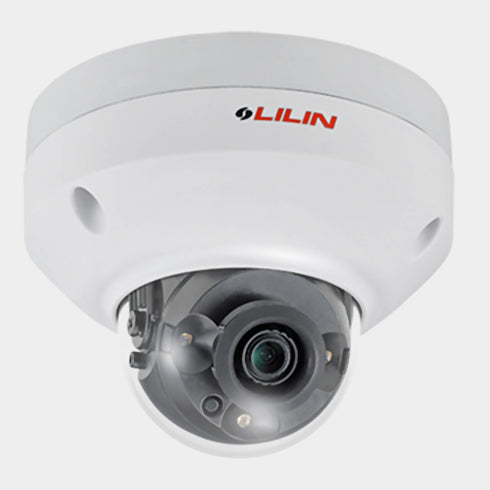

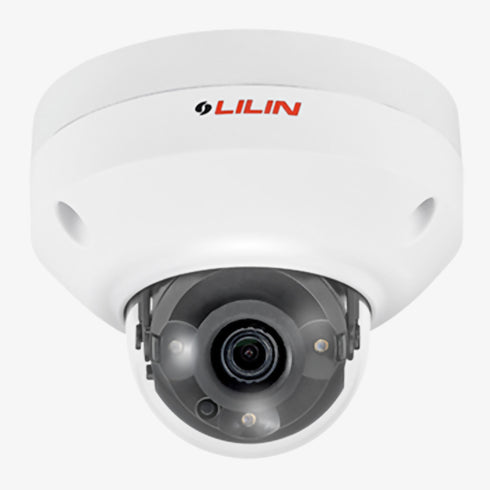

P2R3022AE2 1080P Day & Night Fixed IR Dome IP Camera
<p>The P2R3022AE2 is a high-performance 1080P fixed dome network camera designed for professional security applications. It features a 2MP CMOS sensor for detailed full HD imaging with superior low-light performance. This camera supports advanced compression formats, built-in microphone, two-way audio, and Smart H.265/H.264 technology for efficient streaming. Equipped with IR LEDs for up to 30 meters of night vision, HDR up to 120dB, and multiple intelligent video analytics, it ensures clear and reliable surveillance day and night. Its compact plastic casing makes it suitable for indoor or sheltered outdoor use.</p> <ul> <li>2MP CMOS image sensor delivers full HD 1080P resolution</li> <li>Smart H.265/H.264 compression with 3D noise reduction</li> <li>Built-in microphone and two-way audio communication</li> <li>IR LEDs provide up to 30m night vision capability</li> <li>Supports ONVIF Profiles S and T for wide compatibility</li> </ul>
Equipped with a 2MP CMOS image sensor delivering 1920×1080 Full HD resolution for sharp video quality.
Supports H.265/HEVC and H.264 compression standards, ensuring efficient bandwidth and storage use.
Features a fixed 2.8mm lens with F1.6 aperture for wide-angle surveillance and low-light performance.
Built-in sensitive microphone and 2-way audio capability with support for G.711/PCM/AAC and SIP protocols.
Offers 1 audio input and 1 output for flexible sound integration in surveillance systems.
Includes 1 alarm input and 1 output to enhance event-triggered recording and response.
Advanced video features like Smart H.264/H.265, 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB.
Infrared LEDs provide up to 30m night vision with a 60° beam angle using 850nm wavelength.
Day & Night function with IR cut filter ensures clear images under varying light conditions.
Supports Digital PTZ, IVS, and Smart Events for intelligent video surveillance analytics.
ONVIF Profiles S / T compatibility allows seamless integration with third-party systems.
Works with LILIN Pro mobile app for remote access on iOS and Android devices.
MicroSD card slot supports recording up to 1TB (card not included) for local storage.
Weather-resistant plastic casing with CE and FCC certifications for reliable indoor and semi-outdoor use.
Low power consumption (max 7.5W), supports both DC12V and PoE (IEEE 802.3af) for flexible installation.
| MODEL NAME | P2R3022AE2 1080P Day & Night Fixed IR Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 2MP CMOS image sensor (1920×1080) |
| COMPRESSION | H.265/HEVC & H.264 high-performance compression |
| LENS | Fixed 2.8mm lens, F1.6 |
| AUDIO | Built-in microphone & 2-way audio (G.711/PCM/AAC, SIP) |
| AUDIO I/O | 1 input / 1 output |
| ALARM I/O | 1 input / 1 output |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| WDR / HDR | 2D WDR, HDR up to 120dB |
| IR RANGE | 30m (850nm, 60°) |
| DAY & NIGHT | IR cut removable |
| DIGITAL ZOOM | Digital PTZ |
| INTELLIGENT FUNCTIONS | IVS, Smart Events |
| ONVIF SUPPORT | Profiles S / T |
| MOBILE APP | Integrated with LILIN Pro (iOS, Android) |
| STORAGE | MicroSD up to 1TB (card not included) |
| MIN. ILLUMINATION | 0.005 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 104.4°(H), 58.1°(V), 119.1°(D) |
| MAX IR DISTANCE | 30m |
| VIDEO RESOLUTION | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Normal: up to 60 fps @ 1080p; HDR: up to 30 fps |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
| POWER | DC12V ±10% / PoE (IEEE 802.3af), Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 365g |
| CASING | Plastic |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
