1815-302 Proximity Reader – Compact Reader for 1830-90 Series
Zoom

1815-302 Proximity Reader – Compact Reader for 1830-90 Series

SKU:

BARCODE:

PRODUCT TYPE: Proximity Reader

VENDOR: Alfa Iris

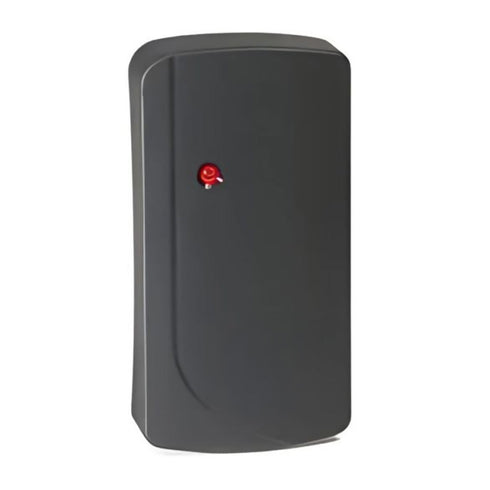

1815-302 Proximity Reader is a compact and durable access control component designed for seamless integration with 1830-90 Series entry systems. It provides up to a 2-inch read range, ensuring fast and reliable card detection. The unit’s epoxy-sealed design offers superior vandal resistance and weatherproof performance for both indoor and outdoor installations. Featuring LED indicators and an audible beeper, this maintenance-free reader ensures easy operation and dependable performance in secure entry applications.

  • Compact design fits 1830-90 Series entry systems
  • Durable epoxy-sealed housing for outdoor use
  • Up to 2-inch (5 cm) proximity read range
  • LED and beeper indicators for user feedback
  • Compatible with standard 26-bit Wiegand controllers
DELIVERY & RETURN
MESSAGE
KEY FEATURES
SPECIFICATION
DESCRIPTION
KEY FEATURES

Compact proximity reader engineered specifically for seamless integration with 1830-90 Series entry systems.

Supports up to a 2-inch (5 cm) read range, offering efficient and quick access control.

Sealed in epoxy for exceptional vandal resistance and durability in harsh outdoor environments.

Ideal for flush-mount installations within telephone entry units for a streamlined appearance.

Fully compatible with all 1830 Series and standard 26-bit Wiegand controller systems.

Operates with passive DKProx cards and keytags—no batteries required for functionality.

Features integrated Red/Green LED indicators and an audible beeper for intuitive user feedback.

Maintenance-free design with no moving parts ensures high reliability and long service life.

125 kHz frequency operation, optimized for consistent and secure proximity reading.

Internal mounting within the 1830-90 Series system, enabling clean and concealed installation.

Low-power operation with 12VDC ±10% input and 200mA current draw for energy-efficient performance.

Suitable for both indoor and outdoor environments, ensuring versatile deployment options.

SPECIFICATION
MODEL NAME1815-302 Proximity Reader
PRODUCT TYPEProximity Reader
VENDORAlfa Iris
APPLICATIONDesigned for 1830-90 Series entry systems
READ RANGEUp to 2" (5 cm)
MOUNTInternal to 1830-90 Series systems
FREQUENCY125 kHz
OUTPUT26-bit Wiegand
VOLTAGE12VDC ±10%, 200mA
INDICATORSRed/Green LED, Piezo Beeper
COMPATIBILITY1830 Series and all 26-bit Wiegand controllers
SUPPORTED CARDSPassive DKProx cards and keytags
ENVIRONMENTIndoor/Outdoor
VANDAL RESISTANCESealed epoxy for durability
INSTALLATION TYPEFlush-mount in telephone entry units
OPERATIONMaintenance-free, no moving parts
DESCRIPTION
