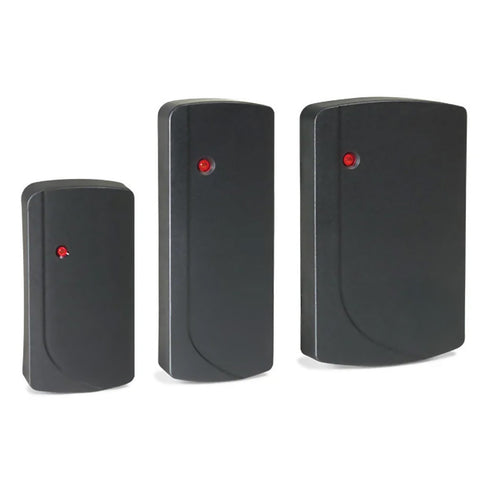

1815-300 Proximity Reader Mullion Mount Access Control Reader
1815-300 Proximity Reader offers reliable access control performance for narrow-profile installations. Designed for both indoor and outdoor environments, it ensures secure and convenient entry management with a read range of up to 3 inches. The unit is fully sealed in epoxy for enhanced weather and vandal resistance, supporting 26-bit Wiegand controllers and passive proximity credentials. Its dual-color LED and audible feedback provide intuitive user interaction, while its durable, maintenance-free construction guarantees long-lasting operation in gates, doors, or parking applications.
- Mullion-mount proximity reader for narrow installations
- Weatherproof and vandal-resistant epoxy-sealed design
- Read range up to 3 inches for convenient access
- Compatible with most 26-bit Wiegand controllers
- Dual-color LED and beeper provide user feedback
Designed for mullion mounting, ideal for narrow-profile installations such as door frames and gateposts.
Offers a read range of up to 3 inches (7.6 cm), ensuring efficient proximity card detection.
Encased in fully sealed epoxy for superior vandal resistance and all-weather durability.
Engineered for both indoor and outdoor use, suitable for doors, gates, and parking access points.
Compatible with 1830 Series systems and most 26-bit Wiegand controllers for seamless integration.
Supports passive DKProx cards and tags, eliminating the need for batteries.
Includes a dual-color LED (Red/Green) and piezo beeper for clear user feedback and status indication.
Operates maintenance-free with no moving parts or physical contact required during use.
Functions at a 125 kHz frequency with a 26-bit Wiegand output format for secure data transmission.
Runs on 12VDC ±10% power input and consumes 200mA, optimized for low-power systems.
| MODEL NAME | 1815-300 Proximity Reader Mullion Mount Access Control Reader |
| PRODUCT TYPE | Proximity Reader |
| VENDOR | Alfa Iris |
| INSTALLATION TYPE | Mullion-mount (narrow-profile) |
| READ RANGE | Up to 3 inches (7.6 cm) |
| FREQUENCY | 125 kHz |
| OUTPUT | 26-bit Wiegand |
| VOLTAGE | 12VDC ±10%, 200mA |
| LED INDICATOR | Red/Green |
| BEEPER | Yes, Piezo Beeper |
| USER FEEDBACK | LED status indicator and beeper |
| MAINTENANCE | Maintenance-free, no moving parts or contact |
| BUILD TYPE | Fully sealed in epoxy – vandal-resistant and weatherproof |
| USAGE ENVIRONMENT | Indoor/Outdoor |
| APPLICATION | Gates, doors, and parking access |
| COMPATIBILITY | 1830 Series and most 26-bit Wiegand controllers |
| CARD/TAG SUPPORT | Passive DKProx cards and tags (no battery required) |
