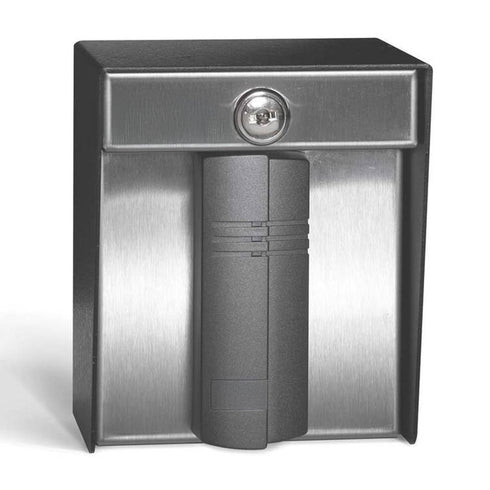

1520 Stand-Alone Card Reader and Access Controller

Functions as a standalone access control system, managing entry for a single door or gate without requiring network integration.

Equipped with a built-in proximity reader compatible with DK, DK Prox, AWID, and HID credentials for flexible access options.

Also available as a controller-only version, supporting custom 26-bit Wiegand devices for advanced installations.

Allows user-friendly programming through its integrated keypad, eliminating the need for external configuration tools.

Stores up to 1000 unique card codes, making it ideal for mid-sized residential, commercial, or gated applications.

Features four programmable time zones to accommodate varied access schedules across user groups.

Timed anti-pass back feature (1–59 minutes) helps prevent card misuse and enhances security enforcement.

Includes a transaction buffer capable of holding the last 3600 events for detailed activity tracking.

Clock and memory buffer maintain data for up to 3 days during power outages, preserving key settings and event logs.

Provides a Form C dry contact relay output (30V, 1A), suitable for a wide range of electric locking mechanisms.

Operates reliably in harsh environments, with an indoor/outdoor rating and temperature range from -35°C to +65°C.

Designed for surface mounting, simplifying installation on gates, doors, or access enclosures.

Supplied with a 16 VAC power transformer (20 VA), ensuring ready-to-install convenience for integrators.

Ideal for residential buildings, multi-family entry points, gated communities, and parking or storage facilities.

Compact and rugged unit weighing approximately 8 lbs (3.6 kg), delivering both durability and performance.
