High-end 25X PTZ for Smart Surveillance Projects

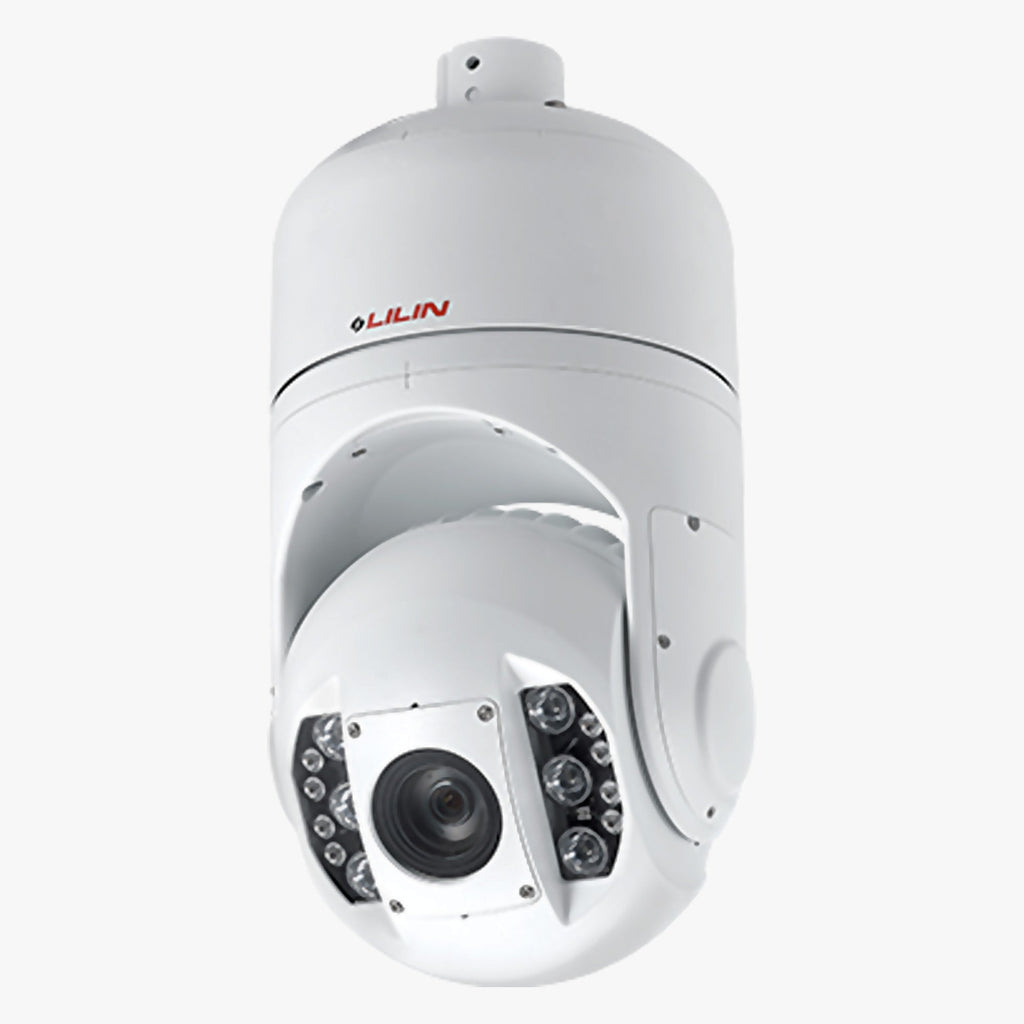

LILIN S7R5554X25-C from Ai ACUMEN is a professional-grade IP PTZ camera engineered for the most demanding security installations across the United States. Combining a 5MP CMOS sensor, 25X optical zoom, and smart AI analytics, it delivers unmatched clarity and precision for perimeter protection, industrial sites, and urban surveillance. As one of the most robust IP PTZ cameras USA, this model brings together durability, intelligence, and compliance in one NEMA 4X-certified housing.

Advanced Optics for Precision Surveillance

At the heart of the S7R5554X25-C lies a high-performance 1/2.8” 5MP CMOS sensor that captures crisp, high-definition video at up to 30 frames per second in both normal and HDR modes. Its 25X optical zoom lens (5.3–132.5 mm) and additional 8X digital zoom provide exceptional flexibility, allowing operators to monitor vast areas or focus on fine details from hundreds of feet away. HDR technology with up to 140dB ensures balanced exposure across scenes with mixed lighting, while 3D noise reduction keeps images sharp even in low-light or high-contrast conditions.

These optical capabilities make it ideal for large-scale video surveillance systems USA that require precision monitoring across multiple zones such as airports, seaports, transportation hubs, and public infrastructure. Integrators and contractors seeking professional IP security cameras that meet NDAA standards will find the S7R5554X25-C an excellent choice for modern networked security environments.

Designed for Extreme Environments

This LILIN model is both IP66 weatherproof and IK10 vandal resistant, offering robust protection against rain, dust, corrosion, and impact. The addition of NEMA 4X certification further ensures it can withstand harsh coastal or industrial conditions where salt spray and heavy humidity could damage ordinary cameras. The built-in heater and fan system allows continuous operation from -40°C to +50°C, ensuring dependable performance in extreme cold or heat.

Its 200-meter IR night vision and mechanical IR-cut filter enable clear imaging even in total darkness — an essential feature for 24/7 security coverage. Whether deployed in logistics terminals, critical energy facilities, or remote construction sites, the S7R5554X25-C stands as a durable and reliable asset in any weatherproof CCTV for businesses installation.

Smart AI Detection and Auto-Tracking

The camera supports AI-based object classification, capable of distinguishing between people, vehicles, boats, and animals. This feature reduces false alarms and enhances the effectiveness of real-time monitoring. When integrated into a cloud access control and CCTV solution, the camera’s metadata stream allows event-based triggers such as door lock activation, alarm notifications, or recording prioritization. With AI auto-tracking, the camera automatically follows a moving target across its full 360° pan range and 240° tilt, maintaining constant focus for forensic accuracy.

Intelligent Video Surveillance Benefits

• AI detection modes for people, vehicles, and objects.
• Automatic subject tracking with zoom adjustment.
• Smart event triggers for motion, audio, and tampering.
• Compatible with major VMS platforms supporting ONVIF Profile S.

Professional Integration with Commercial CCTV Systems

LILIN’s commitment to open architecture ensures that the S7R5554X25-C integrates seamlessly with leading commercial CCTV installation projects across the USA. Using H.265/H.264/MJPEG triple streaming, the camera offers flexibility in bandwidth and storage management, while edge recording via SD card (up to 1TB) ensures redundancy in case of network disruptions. The PTZ mechanism provides smooth, rapid control up to 300°/s, ideal for live-operator monitoring in security command centers.

Security professionals deploying cloud video surveillance and access systems can pair this PTZ model with smart NVRs, cloud gateways, or hybrid recorders distributed by Ai ACUMEN. This combination delivers a unified platform for both camera and door access control systems, supporting real-time analytics, event logs, and mobile alerts.

Reliable Power and Compliance

The S7R5554X25-C operates on AC24V ±10% or DC24V (max 90W) power, allowing flexible deployment in legacy and modern infrastructures. Compliance with UL, CE, and FCC standards ensures safe installation, while NDAA compliance positions it for federal and enterprise contracts. Distributors and contractors can confidently promote this model as a fully vetted component for NDAA-compliant CCTV cameras and IP-based access control hardware.

Key Technical Specifications

• Sensor: 1/2.8” CMOS, 5MP (2592×1944)
• Zoom: 25X optical (5.3–132.5 mm) + 8X digital
• Frame Rate: 30 FPS @ 5MP
• HDR: up to 140dB
• IR Range: up to 200m
• Pan/Tilt: 360° endless / -30° to +210°
• Operating Temp: -40°C to +50°C
• Certifications: NEMA 4X, IK10, IP66, UL, CE, FCC

Integration for Access Control and CCTV Solutions

For enterprise projects requiring both surveillance and access control, Ai ACUMEN provides integrated solutions that combine this camera with smart door access control systems. By linking door events with PTZ video triggers, security teams gain complete situational awareness across campuses, parking areas, and restricted facilities. This synergy aligns perfectly with cloud-based access control solutions that emphasize automation, analytics, and remote management.

Recommended Applications

• Transportation terminals and ports with wide-area monitoring needs.
• Industrial and utility facilities with NEMA 4X corrosion exposure.
• Corporate and municipal projects requiring NDAA-compliant systems.
• Warehouses, factories, and logistics zones needing long-range IR coverage.

Partnering with Ai ACUMEN for Reliable Supply

Ai ACUMEN acts as a leading CCTV security equipment supplier for professional integrators, offering wholesale access to the full range of LILIN IP PTZ cameras USA. The company supports contractors with logistics, warranty services, and technical expertise for system configuration, ensuring every project achieves peak performance and regulatory compliance.

By choosing Ai ACUMEN as your U.S. security camera supplier, you gain access to an extensive inventory of NDAA-compliant cameras, NVRs, door controllers, and related accessories — all designed to streamline procurement for large-scale deployments. Each product undergoes rigorous quality control to maintain consistency across security projects nationwide.

Summary and Industry Outlook

In a competitive surveillance landscape, the LILIN S7R5554X25-C represents a high-value investment for professional installers and integrators. Its blend of powerful zoom, AI analytics, weather-resistant construction, and NDAA compliance makes it one of the most reliable IP PTZ cameras USA available today. Backed by Ai ACUMEN distribution and support, it ensures long-term performance for mission-critical surveillance environments.
